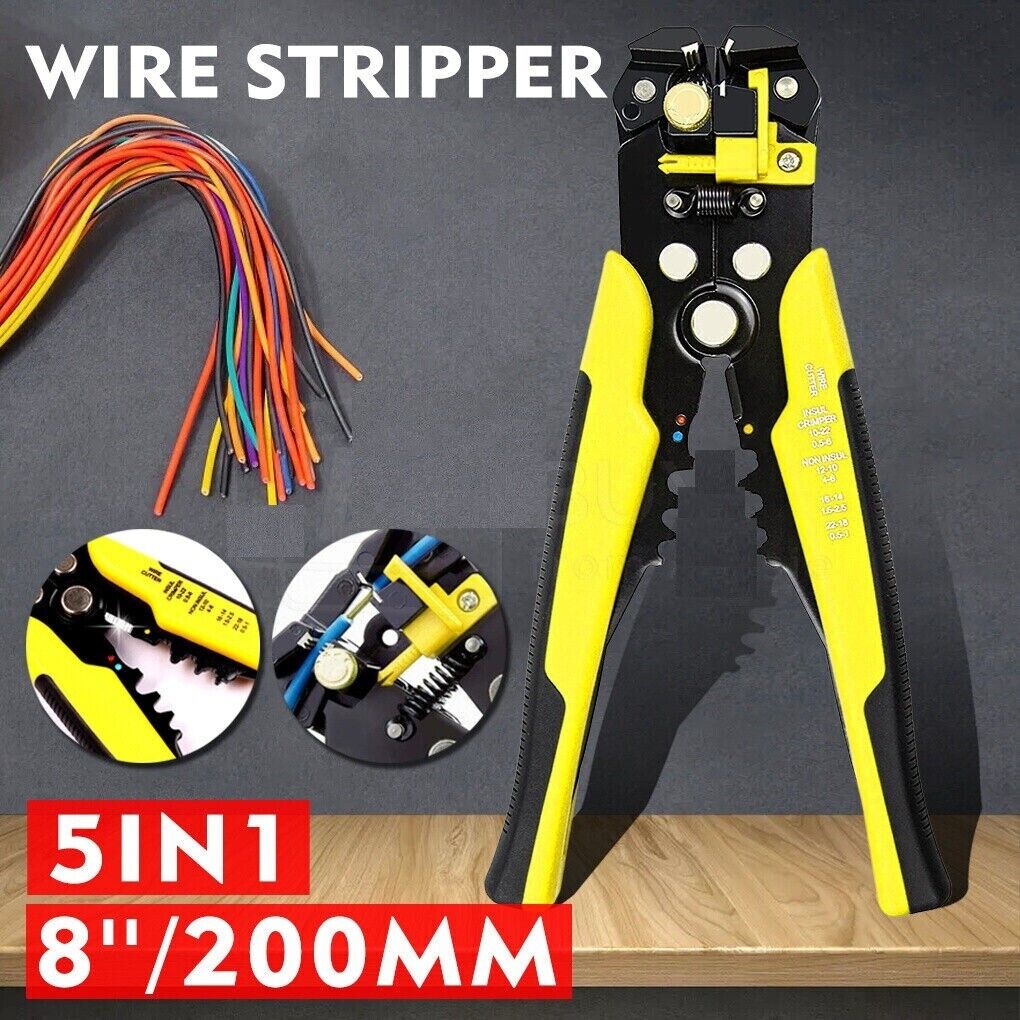

Automatic Wire Cutter Stripper Pliers Electrical Cable Crimper Terminal Tool

$29.95
Unit price per

Tax included. Shipping calculated at checkout.

Automatic Wire Stripper, Cutter & Crimper That Automatically Adjusts To The Wire Gauge 10-24 AWG, Cuts Wire & Crimps Insulated & Non-Insulated Terminals From 10-22 AWG, Padded Handles For Comfort Coated Metal To Resist Rust & Corrosion, Clamshell.

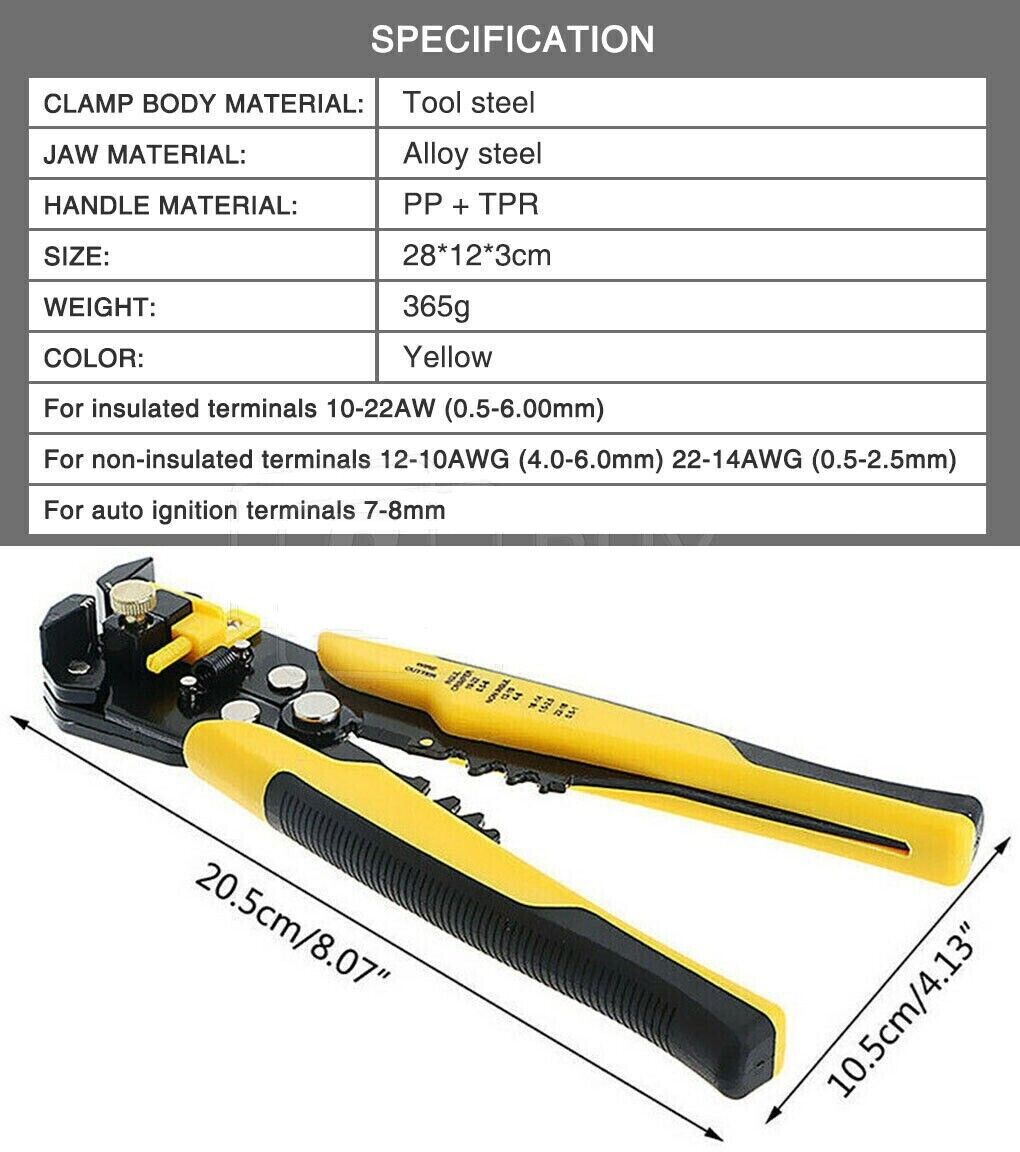

Length: 20.5cm
material:
Head: alloy steel
Cutter head: Cr12MoV, hardness HRC55-60, process wire cutting process.
Pliers: A3 heat treatment
Handle: PP+TPR

Cutting function
Terminal crimping: insulated terminal 22-10AWG/0.5-6mm2
For insulated terminal 10-22AWG/0.5-6mm
Non-insulated terminal crimp: 12-10AWG/4-6mm
Non-insulated terminal crimp: 22-14AWG/0.5-2.5mm
Auto ignition terminals 7-8mm

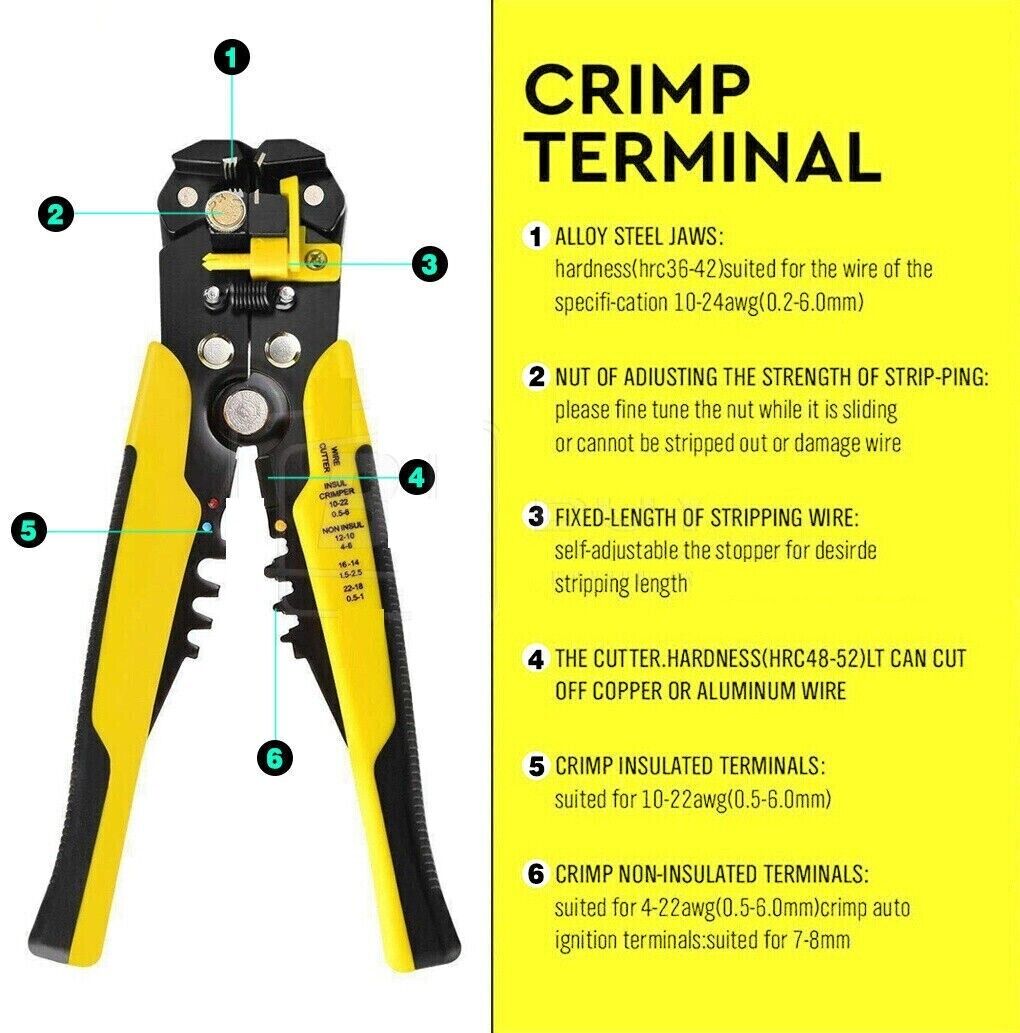

How to use the adjustment screw:
1. Turn the adjusting screw to adjust the blade biting force, counterclockwise to reduce, clockwise increase
2. When peeling thin wires, please adjust the screws counterclockwise.
3. If the wire has a broken wire, please adjust the screw counterclockwise.
4. When it is difficult to strip or can not strip, adjust the screw clockwise.

Package Includes 1x Automatic Wire Stripper
