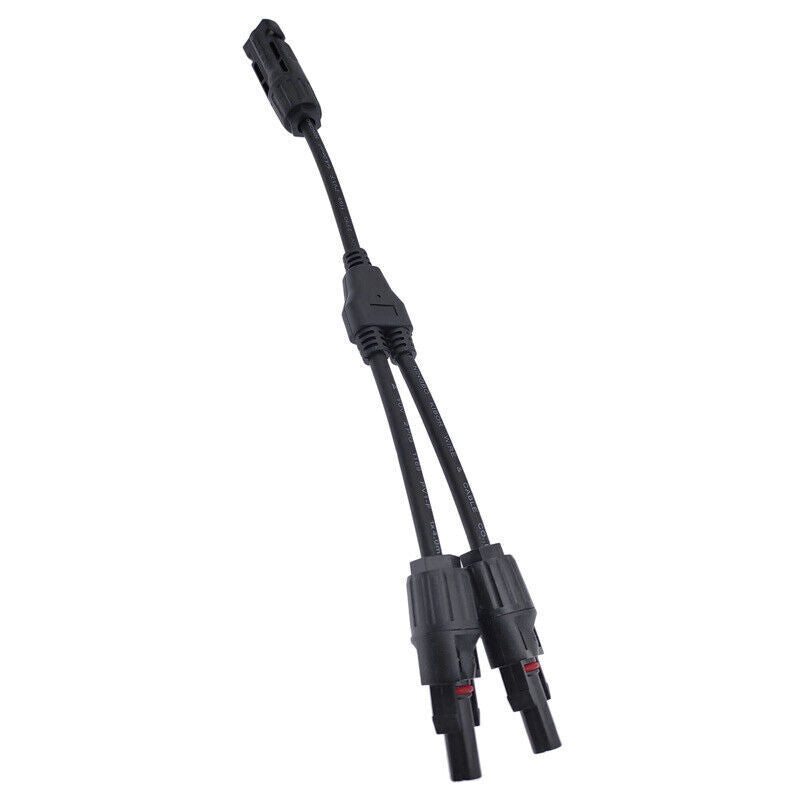

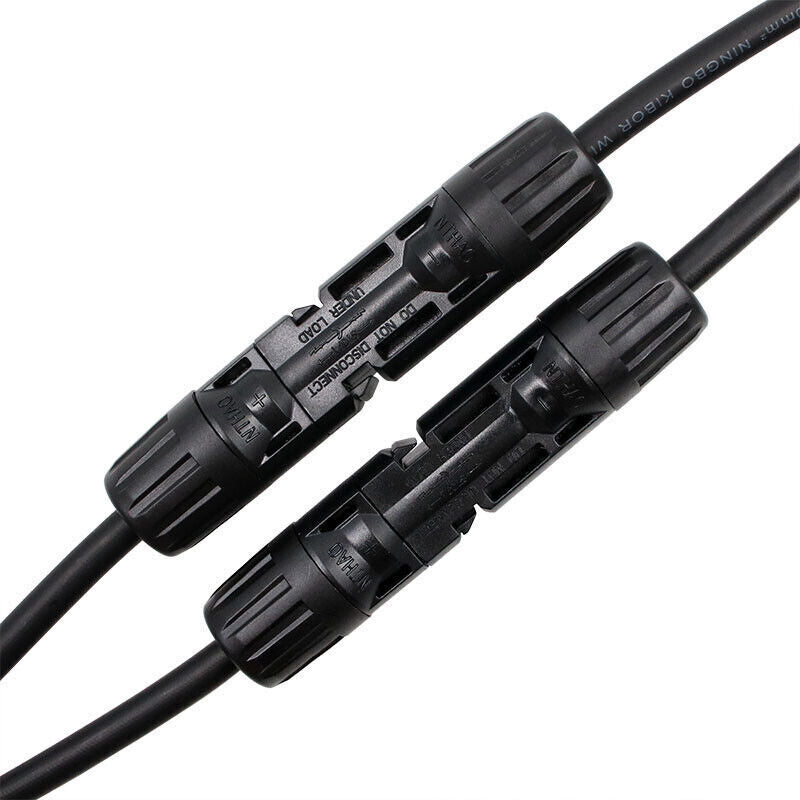

1 Pair Solar Y Connector Cable Plug Inline Solar PV Panel IP67 2 Connection

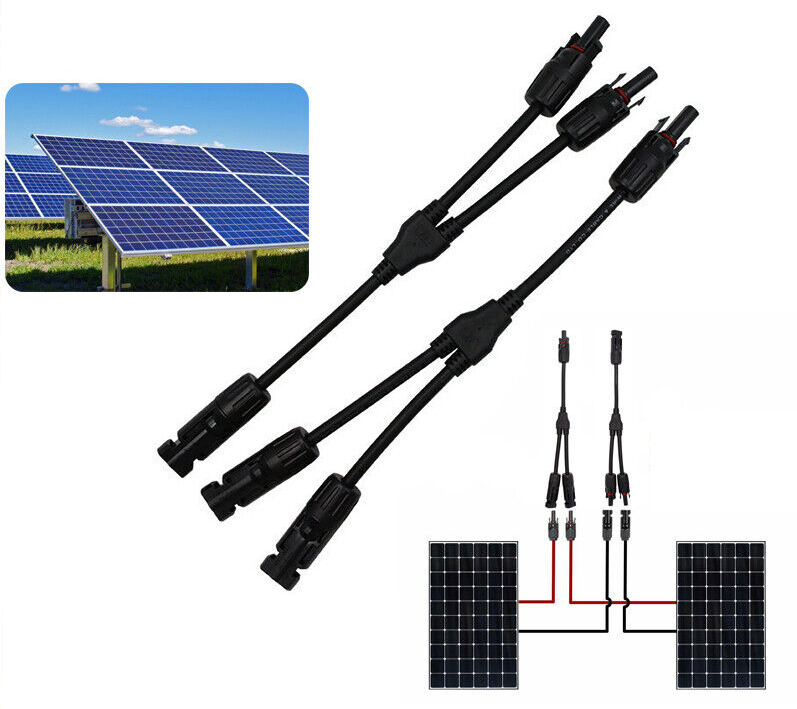

- This Y Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field, and is typically used in parallel applications
- It also has the feature of waterproof, so you don't worry about the rain

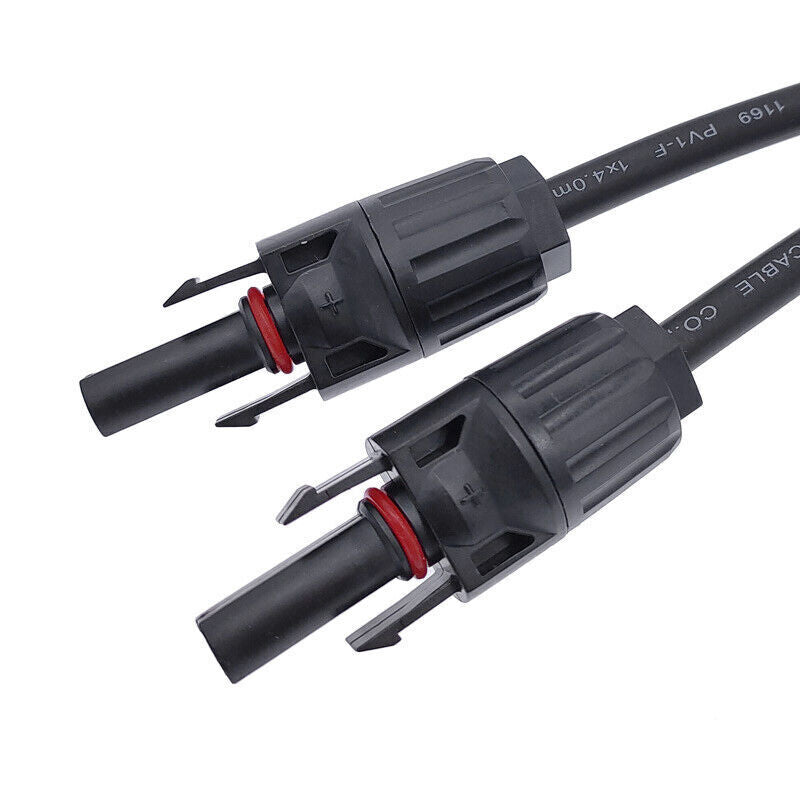

- Double seal rings for better waterproof effect
- Compatible with PV cables with different insulation diameters

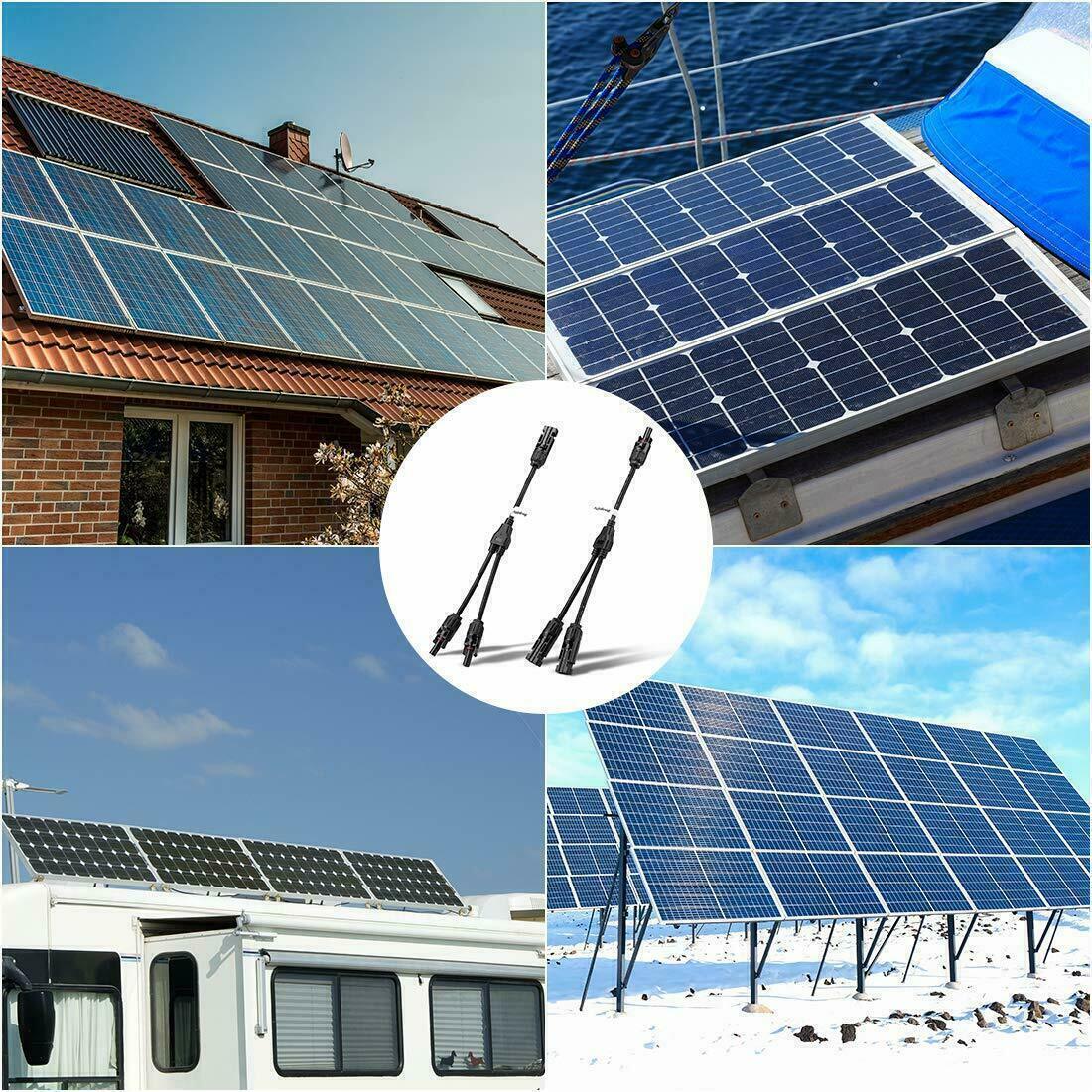

- It can be used in harsh environment
- With excellent aging resistance and UV endurance
- Created seal, design of dust proof
- Load capability with big current and high voltage
- Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
- Strong pulling force capability
- Resistance of extra high & low temperature and fireproof
- Lower contact resistance
Specification:
- Insulation material: PPO
- Rated current: 20-30A
- Rated voltage: 1000V(TUV)&600V(UL)
- Test voltage: 6kV(50Hz,lmin)
- Typical contact resistance: ≤5mΩ
- Contact material: Copper, silver plated
- Degree of protection: IP67
- Safety degree: ll
- Flame class: UL94-V0
- Material RTl: 110℃
- Ambient temperature range: -40℃ until+85℃
- Insertion force: ≤50N
- Withdrawal force: ≥ 50N
- Cable length: 29.5cm

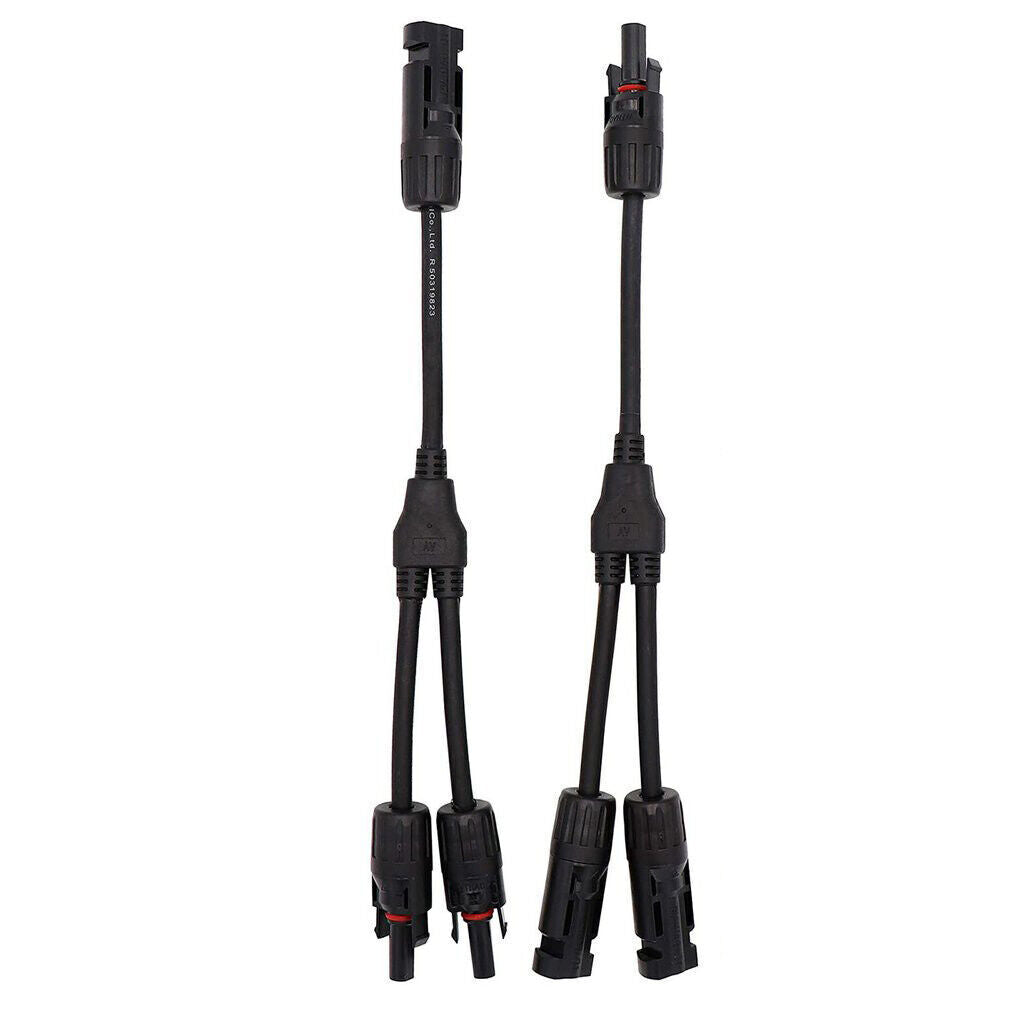

Package Includes：1 Pairs Y Branch Connector
